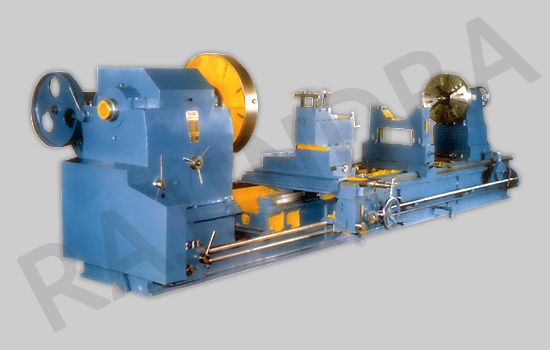

DOUBLE CHUCK LATHE MACHINE



Technical Specification Of Double Chuck Lathe Machine
Particulars
mm
mm
mm
mm
mm
mm
Length Of Bed
30' (9100)
36'(10970)
26'(7925)
26'(7925)
40'(12190)
40'(12190)
Width Of Bed
26" (660)
30"(760)
36"(915)
40"(1015)
40"(1015)
45"(1145)
Total Width Of Gap
24"(610)
30"(760)
30"(760)
30"(760)
30"(760)
30"(760)
Width Of Gap In Front Of Face Plate
21"(530)
24"(610)
24"(610)
24"(610)
24"(610)
24"(610)
Swing in Gap Dia
76"(1930)
84"(2130)
95"(2415)
103"(2615)
103"(2615)
110"(2795)
Admit Between Centers
294"(7450)
360"(9140)
233"(5915)
233"(5915)
400"(10160)
396"(10060)
Height Of Center Over Bed
24"(610)
27"(685)
34"(865)
38"(965)
38"(965)
42"(1065)
Maximum Swing Over Carriage
38"(965)
44"(1115)
55"(1400)
63"(1600)
63"(1600)
70"(1780)
Spindle Hollow
7-1/8"(105)"
4-1/8"(105)
4-1/8"(105)
4-1/8"(105)
4-1/8"(105)
4-1/8"(105)

TO
TO
TO
TO
TO
TO

5-5/8"(142)
5-5/8"(142)
5-5/8"(142)
5-5/8"(142)
5-5/8"(142)
5-5/8"(142)
M.T. Center
5
5
5
5
5
5
No. Spindle Speeds
6
6
6
6
6
6
No. of Pedestals
Plano Bed
Plano Bed
Plano Bed
Plano Bed
Plano Bed
Plano Bed
Tail stock Quill Dia
3-3/8"(85)
4"(100)
4"(100)
4"(100)
4"(100)
4-3/4"(120)
Tail stock Quill Traval
18"(450)
20"(500)
20"(500)
20"(500)
20"(500)
20"(500)
Leadscrew Dia
2-3/8"60
2-1/2"(63)
2-1/2"(63)
2-1/2"(63)
2-1/2"(63)
2-1/2"(63)
Feed Shaft Dia
1-1/2"37"
1-1/2"37"
1-1/2"37"
1-1/2"37"
1-1/2"37"
1-1/2"37"
Headstock Gears (helical Cut)
4 D.P.
4 D.P.
4 D.P.
4 D.P.
4 D.P.
4 D.P.
Approx. Gross Weight
111Qntl
154Qntl
140Qntl
148Qntl
199Qntl
230Qntl
Specifications are subject to alteration and improvement without notice.

Note : All the dimenssion are approximate and subject to change according to requirement.
  Also contact for 6' to 40. Lathes of vatious sizes.
  Equipments at an Extra cost - Coolant Pump, Electric Motor, Four Jaws Chuck, Electric Lamp, 3 Jaws self centring chuck, Metric Pitch Gear.
