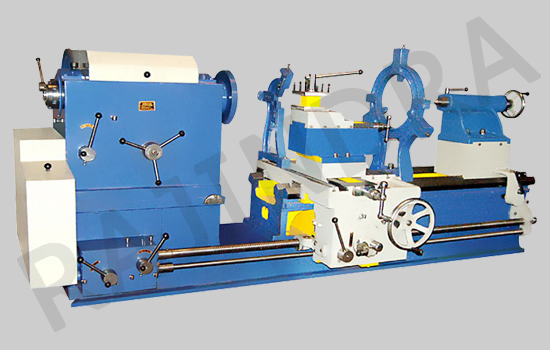

RAJINDRA EXTRA HEAVY DUTY LATHE SERIES MACHINE



Technical Specification Of Extra Heavy Duty Lathe Series Machine
Particulars
mm
mm
mm
mm
mm
mm
Length Of Bed
6'-3' 1900
8'-3' 2500
10'-2' 3100
12'-2' 3700
14'-2' 4300
16'-1' 4900
Width Of Bed
14" 350
14" 350
18" 450
18" 450
18" 450
20" 500
Total Width Of Gap
11" 275
11" 275
19" 480
19" 480
19" 480
20" 610
Width Of Gap In Front Of Face Plate
9" 225
9" 225
15" 380
15" 380
15" 380
19" 490
Swing in Gap Dia
36" 910
36" 910
48" 1220
48" 1220
48" 1220
56" 1420
Admit Between Centers
34" 860
60" 1525
72" 1830
96" 2440
120" 3050
136" 3450
Height Of Center Over Bed
12" 300
12" 300
15" 380
15" 380
15" 380
18" 450
Maximum Swing Over Carriage
18" 455
18" 455
20" 510
20" 510
20" 510
28" 710
Spindle Hollow
2-1/8" 55
2-1/8" 55
3-1/8" 80
3-1/8" 80
3-1/8" 80
4-1/8" 105

TO
TO
TO
TO
TO
TO

2-5/8" 65
2-5/8" 65
3-5/8" 95
3-5/8" 95
3-5/8" 95
5-1/8" 130
M.T. Center
4
5
4
4
4
5
No. Spindle Speeds
8
8
8
8
8
6
No. of Pedestals
2
2
2
2
2
Plano Bed
Tail stock Quill Dia
2-1/8" 55
2-1/8" 55
2-3/8" 60
2-3/8" 60
2-3/8" 60
3" 75
Tail stock Quill Traval
10" 255
10" 255
12" 305
12" 305
12" 305
17" 730
Leadscrew Dia
1-5/8" 40
1-5/8" 40
1-7/8" 45
1-7/8" 45
1-7/8" 45
2-3/8" 60
Feed Shaft Dia
1" 25
1" 25
1-3/16" 30
1-3/16" 30
1-5/16" 33
1-5/16" 33
Headstock Gears (helical Cut)
6 D.P.
6 D.P.
6 D.P.
6 D.P.
6 D.P.
5 D.P.
H.P. Recommended
3 H.P.
3 H.P.
5 H.P.
5 H.P.
5 H.P.
5 H.P.
Approx. Gross Weight
16 Q
17 Q
3 0 Q
33 Q
38 Q
50 Q
Specifications are subject to alteration and improvement without notice.

Note : All the dimenssion are approximate and subject to change according to requirement.
  Also contact for 6' to 40. Lathes of vatious sizes.
  Equipments at an Extra cost - Coolant Pump, Electric Motor, Four Jaws Chuck, Electric Lamp, 3 Jaws self centring chuck, Metric Pitch Gear.
