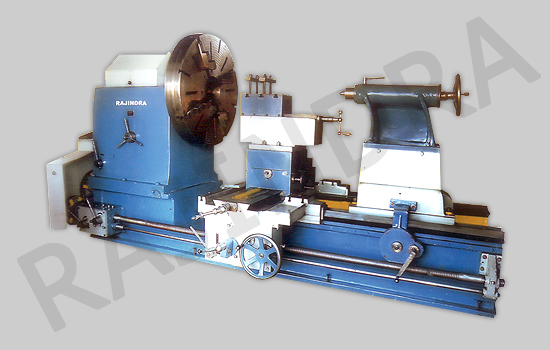

RAJINDRA EXTRA HEAVY DUTY LATHE SERIES MACHINE (1900-15000 mm)



Technical Specification Of Extra Heavy Duty Lathe Series Machine
Particulars
mm
mm
mm
mm
mm
mm
Length Of Bed
12' 3650
14" 4250
16" 4875
12' 3650
14" 4250
16" 4875
Width Of Bed
24" 610
24" 610
24" 610
30" 760
30" 760
30" 760
Total Width Of Gap
24" 610
24" 610
24" 610
30" 760
30" 760
30" 760
Width Of Gap In Front Of Face Plate
20" 510
20" 510
20" 510
24" 600
24" 600
24" 600
Swing in Gap Dia
70" 1775
70" 1775
70" 1775
84" 2120
84" 2120
84" 2120
Admit Between Centers
74" 1880
98" 2490
122" 3100
72" 1820
96" 2425
120" 3045
Height Of Center Over Bed
21" 530
21" 530
21" 530
27" 680
27" 680
27" 680
Maximum Swing Over Carriage
32" 810
32" 810
32" 810
44" 1120
44" 1120
44" 1120
Spindle Hollow
4-1/8" 105
4-1/8" 105
4-1/8" 105
4-1/8" 105
4-1/8" 105
4-1/8" 105

TO
TO
TO
TO
TO
TO

5-5/8" 142
5-5/8" 142
5-5/8" 142
6-1/8" 155
6-1/8" 155
6-1/8" 155
M.T. Center
5
5
5
5
5
5
No. Spindle Speeds
6
6
6
6
6
6
No. of Pedestals
Plano Bed
Plano Bed
Plano Bed
Plano Bed
Plano Bed
Plano Bed
Tail stock Quill Dia
3-1/4" 80
3-1/4" 80
3-1/4" 80
4"(100)
4"(100)
4"(100)
Tail stock Quill Traval
18" 450
20" 500
20" 500
20" 500
20" 500
20" 500
Leadscrew Dia
2-3/8" 60
2-3/8" 60
2-3/8" 60
2-1/2" 63
2-1/2" 63
2-1/2" 63
Feed Shaft Dia
1-1/2" 37
1-1/2" 37
1-1/2" 37
1-1/2" 37
1-1/2" 37
1-1/2" 37
Headstock Gears (helical Cut)
4 D.P.
4 D.P.
4 D.P.
4 D.P.
4 D.P.
4 D.P.
H.P. Recommended
5 H.P.
5 H.P.
5 H.P.
5 H.P.
5 H.P.
5 H.P.
Specifications are subject to alteration and improvement without notice.

Note : All the dimenssion are approximate and subject to change according to requirement.
  Also contact for 6' to 40. Lathes of vatious sizes.
  Equipments at an Extra cost - Coolant Pump, Electric Motor, Four Jaws Chuck, Electric Lamp, 3 Jaws self centring chuck, Metric Pitch Gear.
